david wong

Hey! I'm David, a security consultant at Cryptography Services, the crypto team of NCC Group . This is my blog about cryptography and security and other related topics that I find interesting.

Pandoc : Markdown -> LaTeX

posted December 2014

I just turned in my cryptanalysis project: A Linear Cryptanalysis of A5/2 with Sage. Had to write a rapport in LaTeX.

Now I have to finish the challenges over at Microcorruption and produce a write up in LaTeX as well.

Well LaTeX is awful as a writing syntax. I'd rather focus on writing with John Gruber's excellent markdown syntax and then later convert it to LaTeX. And Pandoc does just that! It's magic. Now that I have all my .md files I concat them with a quick python script

output = ""
for ii in range(1,15):
    markdown = open(str(ii) + ".md", "r")
    output += markdown.read()
    output += "\n\n"
    markdown.close()

output_file = open("rapport.md", "w")
output_file.write(output)
output_file.close()

A bit of Pandoc magic and voilà ! I have a beautiful .tex

Now let's finish Microcorruption (or at least try :D it's getting pretty hard).

PS: I use Markdown for everything. This blog is written in Markdown and then converted to HTML. I'm also writing a book in Markdown. Well Markdown is awesome.

comment on this story

Forward Secrecy

posted December 2014

I was asked during an interview how to build a system where Alice could send encrypted messages to Bob. And I was asked to think outloud.

So I imagined a system where both Alice and Bob would have a set of (public key, private key). I thought of RSA as they all use RSA but ECIES (Elliptic Curve Integrated Encryption Scheme) would be more secure for smaller keys. Although here ECIES is not a "pure" asymmetric encryption scheme and Elgamal with ECs might be better.

Once one wants to communicate he could send a "hello" request and a handshake protocol could take place (to generate a symmetric encryption key (called a session key in this case)).

I imagined that two session keys would be generated by each end. Different set of keys depending on the direction. One for encrypting the messages and one for making the MAC (that would be then appended to the encrypted message. So we EtM (Encrypt-then-Mac)).

Then those keys would be encrypted with the public signature of the other one and sent over the wire like this. And Let's add a signature so we can get authentication and they also won't get tampered. Let's use ECDSA (Elliptic Curve Digital Signature Algorithm) for that.

Although I'm wondering if two symmetric keys for encrypting messages according to the direction is really useful.

I was then asked to think about renewal of keys. Well, the public keys of Alice and Bob are long term keys so I didn't bother with that. About the symmetric keys? What about their TTL (Time To Live)?

My interviewer was nice enough to give me some clues: "It depends on the quantity of messages you encrypt in that time also."

So I thought. Why not using AES in CTR mode. So that after a certain number of iteration we would just regenerate the symmetric keys.

I was then asked to think about Forward Secrecy.

Well I knew the problem it was solving but didn't know it was solving it.

Mark Stamp (a professor of cryptography in California (how many awesome cryptography professors are in California? Seriously?)) kindly uploaded this video of one of his class on "Perfect Forward Secrecy".

So here the trick would be to do an Ephemeral Diffie-Hellman to use a different session key everytime we send something.

This EDH would of course be encrypted as well by our public key system so the attacker would first need to get the private keys to see that EDH.

comment on this story

How can you tell if a cipher is secure?

posted December 2014

How can you tell if a cipher is secure?

I was asked that question during an interview a while ago. Back then it troubled me because it seemed so basic and yet and I had no idea how to answer it. I became vivid and didn't know what to say and later I didn't get the job. I thought it would be interesting to write down how I would answer this question now.

blackbox

We're in the dark

If we have no idea how the algorithm works and can only do some playing with it (or worse, we can only listen to people using it) then we can safely call it a Black box. This is pretty hard to attack and also pretty hard to talk about security here because it might be not secure at all (like Enigma during the war) but we would still have a hard time telling.

We're almost in the dark

If I talk about Blackboxes then I should talk about Whiteboxes. If you have no idea what your cipher is doing, but you can analyze it, then you call that a Whitebox. For example your phone, your credit card, and so on, they all use cryptographic tools that you can take a look at since it is in your own hands. Cryptography was not thought for that kind of model. It was primarily born to hide private conversations from other curious parties and ciphers were supposed to be used by good people only. In our modern world, clever people found a new use for cryptography in our everyday-devices. And it quickly became problematic since a lot of new attacks rose up.

It doesn't mean that attacking a whitebox is easy though. People use reverse engineering, heuristics, side-channel attacks (fault injection, power analysis, sound analysis...) and a lot of other techniques to break them. There are a lot of researches, especially in the domain of smartcards.

We're in the clear

In cryptography, Kerckhoffs's principle was stated by Auguste Kerckhoffs in the 19th century: A cryptosystem should be secure even if everything about the system, except the key, is public knowledge.

wikipedia's page

OK. Now let's talk about a cipher we can see and touch and play with anyway we want.

We will not talk about the implementation of the cipher because it will have the same problems the whitebox have: it will be subject to new attacks depending where and how you implement it. It is a whole new level of research and precautions you have to take. Think about side-channel attacks, bugs (buffer overflow), human errors, padding attacks (if we chose a bad mode of operation for example), etc...

So we'll place ourselves in a more restrictive model.

There is also a lot of different kind of ciphers (and it would be an history class to write about it) so I'll just talk about the most used type of ciphers nowadays: Stream ciphers and Block ciphers (both symmetric ciphers) and Asymmetric ciphers

Although let's just say that it was proven by Shannon in the 40s that the One Time Pad is the only cipher having perfect secrecy.

What kind of secrecy?

There are multiple kinds of secrecy in the literature. Perfect Secrecy that we just talked about. The kind of secrecy that doesn't leak any information about the plaintext and the key (although it might leak the maximum length of it). And if you read more about it you will see that it is not practical thus almost never used.

So we defined a weaker type of secrecy: Semantic secrecy.

There are multiple definitions but they are equivalent to IND-CPA or IND-CCA or IND-CCA2 depending on what you want from your cipher.

  • IND here means Indistinguishable
  • CPA here means "under Chosen Plaintext Attack".
  • CCA means "under Chosen Ciphertext Attack" and it is a stronger definition of secrecy.
  • CCA2 means "under Adaptive Chosen Ciphertext Attack"

ind-cca

Note that Non-Malleability has nothing to do with secrecy. For example the One Time Pad is perfectly secure, yet it is Malleable. Although you can prove that a cipher is non-malleable under chosen ciphertext attack and it would be the same thing as ind-cca. Also, some kind of ciphers are malleable on purpose, see Homomorphic encryption.

There are also talks about Provable secrecy where we reduce the whole cipher/cryptosystem to the solidity of a problem difficult to compute. It's done more for Asymmetric encryption that generally relies on math more than symmetric encryption. For example RSA is provably secure because its entire security relies on the Factoring Problem, which states that it is increasingly very difficult to compute p and q in n = p * q n a large number and p, q primes.

A good cipher

So if we want to prove that our cipher is secure. We would have to prove that an Adversary would have no advantage in a guessing game where he would send us two plaintexts and we would send him back one of the encrypted plaintext (chosen at random) expecting him to guess which one it is (see image above).

This is difficult to prove. For asymmetric encryption we'd rather reduce that to other assumptions. For symmetric encryption we would have to make sure its encrypted ciphertexts look random every time. Like an ideal cipher.

for Stream Ciphers the randomness of the ciphertexts depends a lot on the randomness of the Pseudo Random Number Generator you are building it with (PRNG).

for Block Ciphers there are two things that are important: Confusion and Diffusion. Confusion states that a small change in the key has to change the whole ciphertext, Diffusion states that a small change in the plaintext has to change the whole ciphertext. In AES for example, Confusion is done by using a Key Derivation Function to create several subkeys and XOR them to the internal state on multiple rounds. Diffusion is done during the different rounds with a mix of Permutations and Substitution (that's why we call AES a substitution-permutation network).

Cryptanalysis

A cryptanalyst is the black beast of cryptographers. His job is to attack our lovely ciphers. But this is useful in knowing how secure is a cipher. AES has been considered a solid cipher because it is build on solid principles like the avalanche principle (confusion and diffusion) but not only because of that. Because it has resisted to known attacks since it has been born. A good cipher should resist multiple years of attacks. A good cipher should withstand the efforts of cryptanalyst in time.

What does a cryptanalyst do to break a cipher?

Attacks

The first good answer is bruteforce or exhaustive search. If we can simply bruteforce a cipher then it is obviously not good. When you do this you have to consider the birthday paradox and time-memory trade off attacks. tl;dr: it doesn't take as long as you think to bruteforce something because of probabilities.

And here is why AES is considered a solid cipher again. There are no known attacks better than bruteforcing.

For cryptographers, a cryptographic "break" is anything faster than a brute force

It is known (thanks to Shannon in 1949) that in a known plaintext attack we can build an equation linking the plaintext with the ciphertext and where the unknowns are the bits of the key. Here the algebraic/linear attack would be to solve the system we now have. If it is more complicated than that, we often talk about second order attack, third order attack, etc...

In a Differential cryptanalysis what we do is we try to notice a correlation in the differences between the internal state of several messages getting encrypted. Often to find a subkey and then recover the key Total Break.

Conclusion

So the answer could be summed up like this: After researching how to make a good cipher (reducing it to a known hard math problem if it's an asymmetric cipher; making sure of it having nice criterion (confusion & diffusion) in the case of a block cipher; making sure of the non-correlation of its PNRG and the randomness of its PNRG if it's a stream cipher), you would try to break it with known attacks. Then you would enlarge the model you are working with to see if your cipher is still as secure, and if not how you would modify it or use it to make it secure. For example with textbook RSA you can forge your own packets from it (if you have c = m^e you can create 2^e * c which would successfully decrypt as 2*m) and its deterministic properties (that makes it not semantically secure) leak information ( (c/n) = (m^e/p) (m^e/q) = (m/p)(m/q) = (m/n) with (a/b) being the symbol of Legendre/Jacobi here). Without a padding system like OAEP RSA leaks the Jacobi Symbol of m.

Disclaimer

I'm still a student. Those are information I've gathered and this is my understanding of it.

7 comments

Plethora of links

posted December 2014

I've stumbled on Dan Boneh Number Theory Cheat sheets. Number 1 and Number 2. Quick to read, I'm going to print them and display them somewhere on my walls :)

I also ran into the homepage of Vitaly Shmatikov. He uploaded a lot of slides, presentations and resources on a lot of different courses related to security and cryptography. He also lists a lot of interesting papers. I want to read everything but right now I have to focus on my exams (and interviews for my internship...).

EDIT: Oh but one last link. Orange Labs publications. There are some interesting papers in there too. I'm mostly writing this post to bookmark all those great links somewhere.

EDIT2: How to do a litterature search. That might be useful.

EDIT3: I have also returned to the Rss readers that I had banished from my life something like 7 years ago. I have a tendency to get addicted to things pretty quickly and back then I had subscribed to way too many feeds (I think one post would pop every 2 minutes) and I was constantly reading something. But I figured, what if I filled it with all those blogs on cryptography/security. That would be working and not slacking. So that's what I did. I'm using Digg on desktop and Feedly on my cellphone. And of course I'll be posting here the articles I find interesting :)

comment on this story

Myths about /dev/urandom

posted December 2014

In one of my class the teacher advise against /dev/urandom.

I wondered why. I remembered reading some articles about random vs urandom and urandom being better, but that was years ago and my memory is not fresh. Wikipedia does advise against it, as does the manpage if you want to generate a long term key.

I also stumbled on one of Thomas Pornin's answer on the security SO also pointing to a blogpost from Thomas Hühn

tl;dr:

Fact: /dev/urandom is the preferred source of cryptographic randomness on UNIX-like systems.

comment on this story

Hacking PayPal Accounts with one click

posted December 2014

An interesting 0day on paypal was discolsed by Yasser Ali.

We have found out that an Attacker can obtain the CSRF Auth which can be valid for ALL users, by intercepting the POST request from a page that provide an Auth Token before the Logging-in process, check this page for the magical CSRF Auth “https://www.paypal.com/eg/cgi-bin/webscr?cmd=_send-money”. At this point the attacker Can CSRF “almost” any request on behave of this user.

source

A CSRF attacks (Cross-Site Request Forgery) happens when you can send a link to someone (or embed it into an iframe on your website) and it makes the user do something on a particular website (like paypal) that he didn't intend to do. Or as the name of the attack says, it makes him send a request you forged from outside the website. A CSRF token is used to cancel this attack. It's usually a random value that is send along the request and verified server side. This value is difficult to predict and thus you usually can't forge it along the request.

comment on this story

Differential Fault Analysis

posted December 2014

I wrote about Differential Power Analysis (DPA) but haven't said that there were way more efficient attacks (although that might be more costy to setup). Differential Fault Analysis is a kind of differential cryptanalysis: you analyse the difference between blocks of the internal state and try to extract a subkey or a key. Here we do a fault injection on the internal state of the smartcard during an encryption operation (usually with lasers (photons have the property of igniting a curant in a circuit), or by quickly changing the temperature). The attack presented in http://eprint.iacr.org/2010/440.pdf and https://eprint.iacr.org/2003/010.pdf is targeting the last subkey.

aes fault

We inject a fault on 1 byte of AES (in the picture we consider the internal state of AES to be a 4x4 matrix of bytes) at a particular spot (before the last round) and we see that at one point it creates a diagonal of errors. We can XOR the internal state without fault with the faulty one to display only the propagation of the fault.

aes fault

Here, by doing an hypothesis on keys and seeing how the Addkey operation is modifying this difference we can compute the last subkey.

On AES-128, it is sufficient to know K10 to find the cipher key, but on AES-256, you must know K13 and K14

Although this is only my understanding of the DFA. It also seems to be easier to produce on RSA (and it was originally found by Shamir on RSA).

comment on this story

Google: a new kind of Captcha

posted December 2014

captcha

Google is introducing a new Captcha, instead of trying to read a distorted word and write it down (because robots have troubles reading distorted words) you will just have to click on one button. Google will analyze small cues that prove that you are not a robot (like the movement of the cursor before clicking on the button). Some of those cues will only happen when the mouse will hover the widget, as google is not in control of the entire document when used outside of google's domain.

see more info on wired

edit: more info on google blog as well

someone on hackernews:

It's definitely not only relying on cursor movements. A simple $('iframe').contents().find('.recaptcha-checkbox-checkmark').click() proved that I'm not a robot, without me touching the mouse.

It seems to rely heavily on your cookies as well.

comment on this story

Hack.Summit()

posted December 2014

I'm overwhelmed with interviews those last days. I just spent more than 8 hours on one (remote location, late trains, low battery, no keys... long story).

And like this is not enough, Hack Summit just started

Right now Ed Roman is introducing the hack.summit(). talking about a lot of good stuff and giving some book recommendations.

EDIT: Some notes on what he just said:

  • pair coding (when you code and someone is watching, or the inverse)
  • pomodoro technique (I'm already doing this, even made this)
  • remove distractions (mail, phone...)
  • pretend to talk and explain what you're doing/coding (close to my theory about writing down stuff to organize your thoughts, and pretend to write stuff on the table with your fingers to memorize it)
  • iterate quickly, fail quickly and often.
  • personalize your IDE
  • use git, use the command line...

Now Scott Hanselman is talking but I have to go to the Champs Elysées drink some Glühwein at the Marché de noël some pardon me ;)

Now Tom Chi

hacksummit

comment on this story

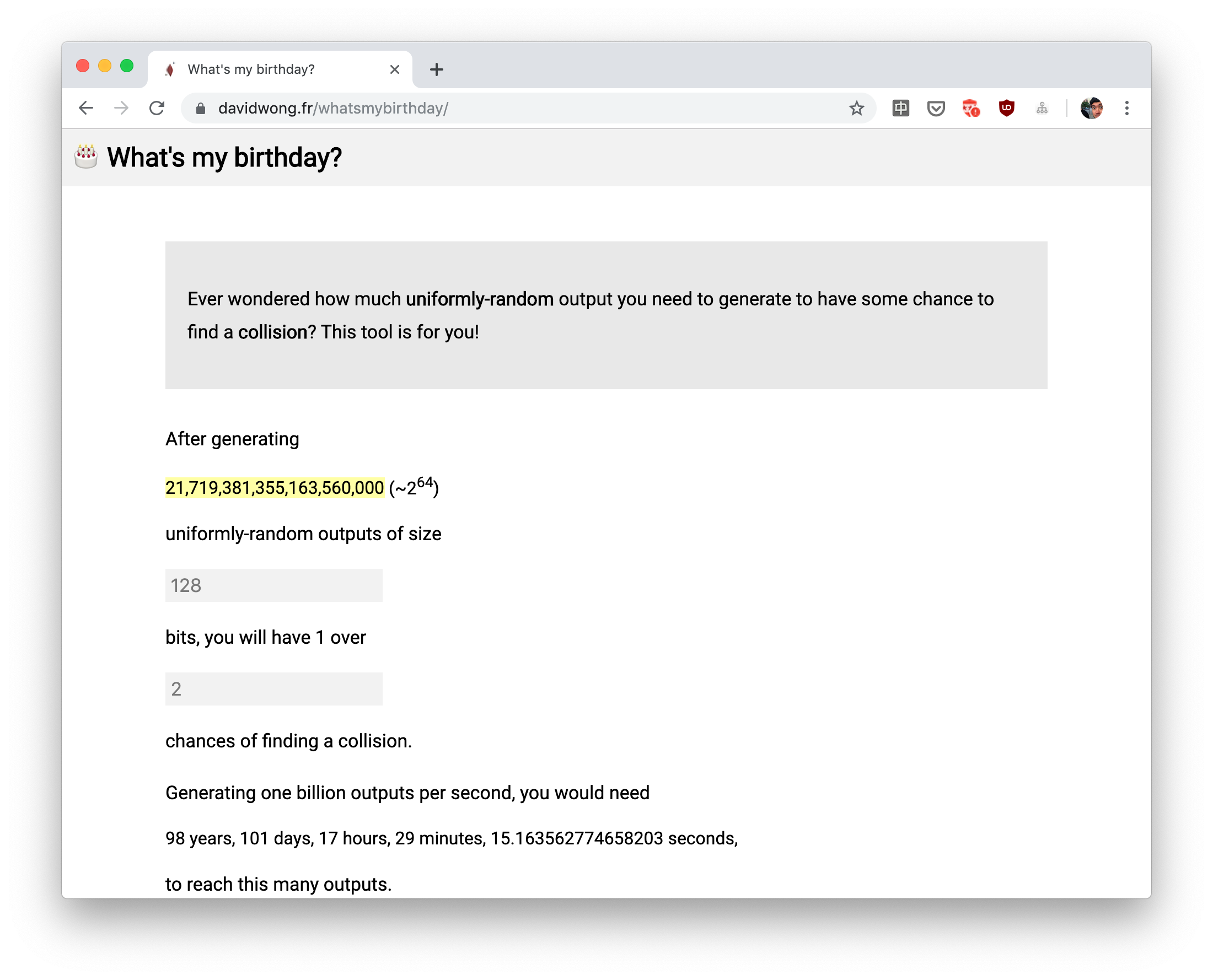

The Birthday Paradox

posted November 2014

I'm studying the internals of hash functions and MACs right now. One-way Compression Functions, Sponge functions, CBC-MAC and... the Merkle–Damgård construction. Trying to find a youtube video about it I run into... The Cryptography course of Dan Boneh I already took 3 years ago. I have a feeling I will forever return to that course during my career as a cryptographer.

The whole playlist is here on youtube and since his course is awesome I just watched again the whole part about MACs. And I thought I should post this explanation of the birthday paradox since as he says:

Everybody should see a proof of the birthday paradox at least once in their life

Something that always bugged me though is that he says the formula for the birthday is 1.2 sqrt(365) whereas it should be square root of 366 since there are indeed 366 different birthdays possible.

comment on this story

ROP and ROPGadget

posted November 2014

This morning I had a course on Return Oriented Programming given by Jonathan Salwan, a classmate of mine also famous inventor of RopGadget.

The slides are here.

A lot of interesting things there. Apparently it's still kind of impossible to completely protect your C code against that kind of attack. Even with all the ASLR, PIE, NX bit and other protections... There is also an awesome lecture about ROP on Coursera I linked to in the previous post here.

Basically, since you can't execute code in the stack, and since the addresses of libraries are randomized because of ASLR, you can find bits of codes ending with a return (called gadgets) and chain them since you control the stack (thus the saved EIPs). What I learned by doing was that it gets complicated if it's 64bits (since a lot of address will have a lot of 0x00 and you can't point to those doing a buffer overflow through a strcpy or something similar) and you won't get a lot of those gadgets if you have dynamically loaded libraries. Static libraries are loaded in the .text section (which is executable of course), so that's all good. Also a good way to store strings of data are in the .data section since it is untouched by the randomization contrarily to the stack.

A lot of researches is done on the subject and new tools like RopGadget are coming, using an old concept (but still actively researched): the SAT solvers. There seems to be a problem though, those SAT solvers yield a set of gadgets to be used for some action you want to accomplish with your shellcode, but you have to do the work of putting them in the right order.

This is what I took from that talk, you can question the guy if that interests you!

comment on this story

Software Security course on Coursera

posted November 2014

I've already talked about Coursera before, and how much I liked it.

The Cryptography course by Dan Boneh is amazing and I often come back to it when I need a reminder. For example, even today I rewatched his video on AES because I was studying Differential Fault Analysis on AES (which is changing bits of the state during one round of AES to leak information about the last round subkey).

So if I could give you another course recommendation, it would be Software Security by Michael Hicks. It looks ultra complete and the few videos I've watched (to complete the security course I'm taking at the University of Bordeaux by Emmanuel Fleury) are top notch.

comment on this story
